X12 945 - SAP S/4 HANA

When an inbound 945 is received from the trading partner endpoint, the ReceiveEDIEvent attempts to match an inbound route. If found, the EDI message is translated to a SAP Outbound Delivery JSON and posted to SAP S/4HANA.

Configure

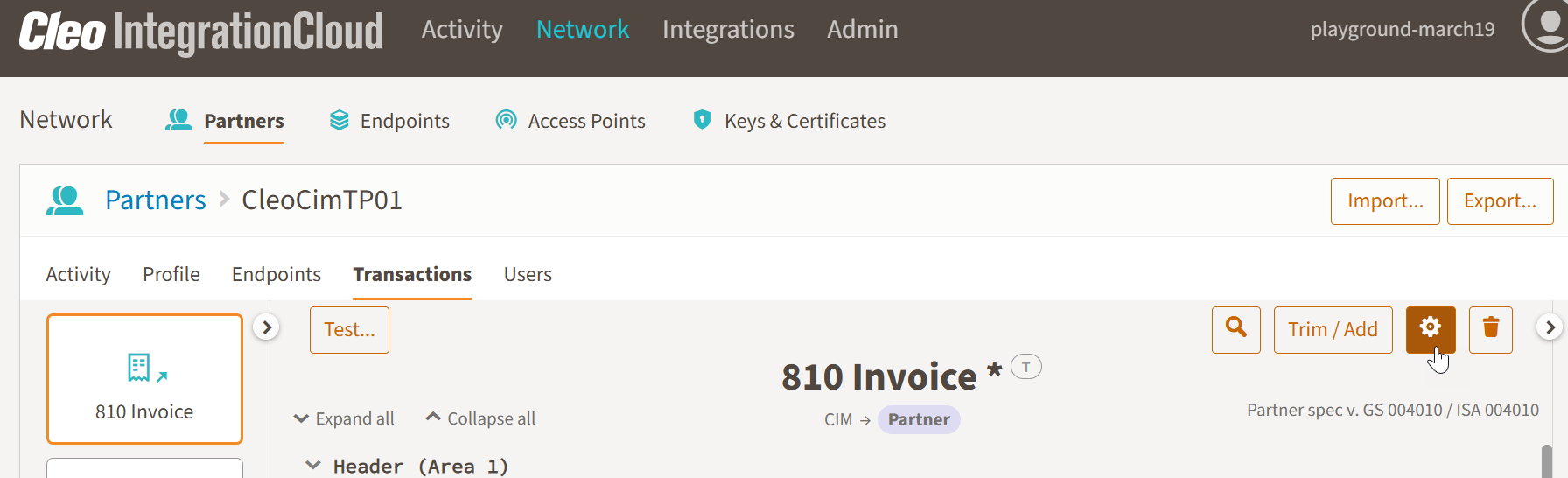

These configurations take place in a partner's profile page in the CIC Cockpit: Network>Partners>Transactions>Settings.

1. Inbound Route. Configure the inbound routing settings, including the specific inbound Route Business Process.
2. EDI Enveloper. Configure the X12 997 envelope details and the trading partner endpoint (to receive 997).

Run the Flow

1. Before proceeding, ensure that the following Projects have been deployed. If any of these Projects are already deployed and remain unmodified, there is no need to redeploy them. Similarly, if any of these Projects were not checked out to your Workspace, they can be skipped from the deployment process.

• com._customer_booster.cim.saphana
• com._customer_.cim.saphana
• com.cleo.customer.edi
• com.cleo.b2bcloud.core
• com.cleo.b2biaas.clarify
• com.cleo.cic.cim.cockpit.rulesets
• com.cleo.cic.cim.schemas
• com.cleo.cic.cockpit.core
• com.cleo.cic.connector.saphana
• com.cleo.cic.pt.api
• com.cleo.cic.pt.edi.schemas
• com.cleo.cic.util

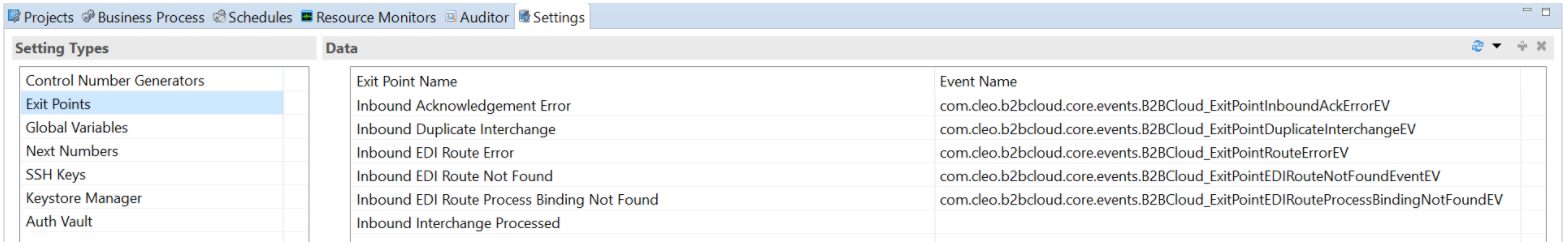

2. Configure the Exit Points.

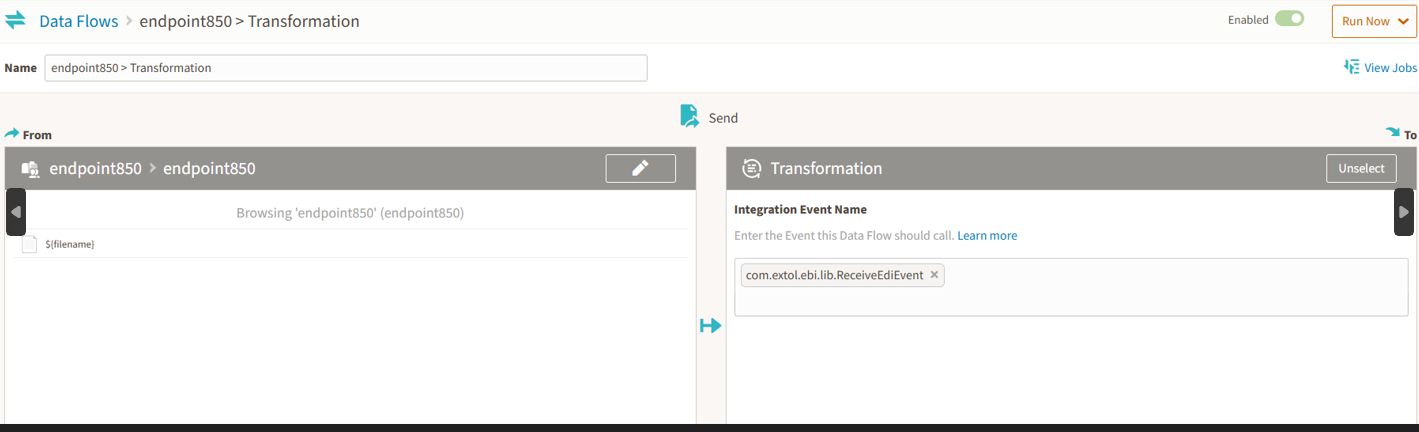

3. Configure the Data Flow. Add a new data flow with the required source endpoint, and select Transformation for the target endpoint. For the event, select com.extol.ebi.lib.ReceiveEDIEvent.

4. Monitor the flow by using the following

• CIC Studio Auditor log entries
• CIC Cockpit views: Messages, Jobs, Dashboard>Charts

In case of errors: If any of the processing steps fail, a ticket is created with the details; the same is visible in the CIC Cockpit's Message and Job views with the Issue Flag.
