The Messages page lists all the messages processed by your system. There are several ways to filter your messages to display only the messages you are interested in. See Filtering Message Activity.

You can click on any message to display the Message Detail page, which contains details about that message, including its original and translated form, and any issues that might have occurred during processing. From the Message Detail page, you can also download and reprocess the message. See Viewing Message Details.

Note: Messages are formatted per your locale. This means times are shown in your local time zone and the formats for date and currency observe your locale.

When you view a list of messages on the Message page, you can view them as tiles or as a list.

Tile view

In the Tile view, information about messages is displayed in tiles across the page. To view messages in Tile view, click the Tile view icon.

Each tile provides details about a single message.

See Message status, Reprocessing status, and Functional Acknowledgement (FA) status below for more information.

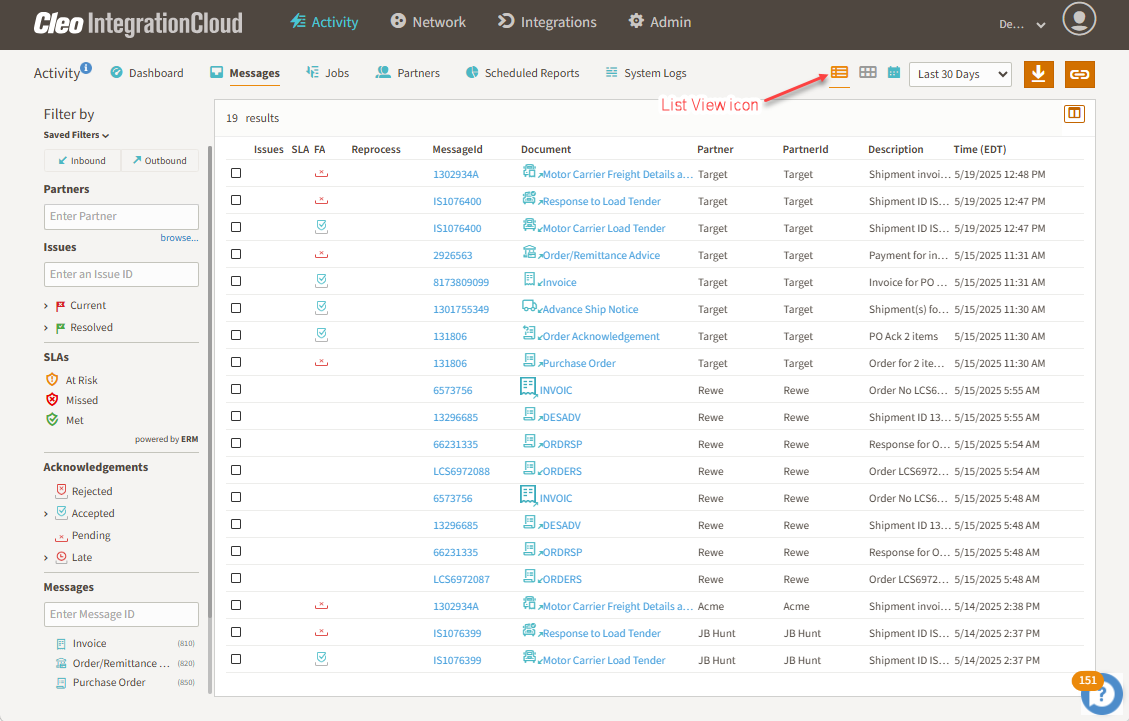

List view

In List view, information about one message is displayed in each line. To view messages in List view, click the List view icon.

Each line in the list provides details about a single message.

See Message status, Reprocessing status, and Functional Acknowledgement (FA) status below for further information.

Managing Columns Displayed

In the Messages List view, message properties appear as columns within the list, and the Manage Columns window allows you to customize the displayed properties. The Manage Columns window displays a list of message properties for every document type processed in the last 30 days. In addition, the list of default columns is shown as well.  You can enable or disable the default columns as needed.

Note: The default columns ,"FA", "Issue" and "MessageId", are locked and cannot be disabled.

Custom column configurations are stored on a per-user basis. At login, if there is a custom column configuration for the user logging in, it is loaded. Otherwise, the default column configuration is loaded.

To customize Message List columns:

1. Go to Messages page and click the Manage columns button.



2. The Manage Columns window appears. The list of properties can take a few seconds to display depending on the number of message properties being retrieved. Click the Refresh button to sync the latest message properties.

   Choose the message properties to be shown as custom columns on the Messages List.



3. You can search for the columns you want to manage. The list of columns updates as you type in the Search field.



4. Select the columns you want to display.



5. Optional: Click and drag the selected columns into the order you want them displayed. Columns listed at the top appear on the left of the page.
6. Click Done.

Message status

The message status indicates if there is an issue associated with a message and whether the issue is "current" (unresolved) or resolved.

Note: The statuses described below relate to how the Message statuses are currently being used to coordinate between Cleo and Cleo Managed Services customers.

Icon	Category	Description
	Current	Indicates the issue is current (unresolved). This category contains four sub-categories
	Open	Issue has been assigned to Cleo and action is pending from Cleo.
	New	Issue has not been assigned to anyone yet. This is the initial state for all issues. Once the status changes, it cannot be set to New again.
	Pending	Issue requires assistance from you, the Cleo customer.
	On Hold	Issue requires assistance from your Partner.
	Resolved	Indicates a Resolved issue.
	Solved	Issue is solved, but not closed. Depending on your configuration, an issue may be set to "Closed" automatically after 3 days of being marked as Solved. See Closed and Solved Issue Status. Otherwise, the "Solved" state is like any other.
	Closed	Issue is closed.

Updating Message Issue Status

Users who manage their own issues can update the status of an issue from the Issue tab on the Job Details page.

When you update the Job Issue status you can also add a comment at the same time.

Closed and Solved Issue Status

Depending on your configuration, CIC may automatically change an issue status to "Closed" after it has been in a "Solved" status for three days. In this case, "Closed" is not available from the dropdown list. If your configuration does not allow for automatically closing issues, you must explicitly update an issue status to "Closed".

Reprocessing status

The Reprocessing status indicates how many times the message has been reprocessed, if at all. See Reprocessing messages.

Functional Acknowledgement (FA) status

A functional acknowledgement (FA) serves as a virtual receipt between trading partners that a transaction has occurred. An FA adds transparency to the business process by indicating the state of the acknowledgement.

CIC provides six possible acknowledgement indicators.

Icon	Description
	Successful acknowledgement. Click this icon to display acknowledgement data separately.
	Successful with error. Click this icon to display acknowledgement data separately.
	Acknowledgement is late and accepted with errors. Click this icon to display acknowledgement data separately.
	Error with acknowledgement. Click this icon to display acknowledgement data separately.
	Acknowledgement not received, but expected.
	Acknowledgement not expected.
	Acknowledgement was received, but late.
	Acknowledgement has not yet been received and is late.

Filtering Message Activity

You can apply filtering criteria on the Messages page to narrow the scope of the data display.

You can toggle filters on the messages displayed as follows:

Saved Filters

Displays a list of filters previously saved that you can apply. Select a saved filter to apply it. See Managing saved filters.

Clear All

Removes all filters and displays messages from the last 30 days, except for the Date filter located in the upper right corner of the page.

By message direction

Click Inbound or Outbound.

By partner

Click in the Partners field to display a list of partners to select from. You can start typing a partner name or ID number to refine the list. When you see the partner you want, select it from the list.

Alternatively, you can click the Browse link.



Clicking this Browse link displays a modal dialog box from which you can select partners to filter on.

By issue

In the Issues field, enter an issue ID and press Enter to display only those messages pertaining to that issue. You can enter a comma-separated list of issue IDs to search on multiple issues.

Click Current or Resolved to display only messages in the selected category, inclusive of sub-categories.

Click the arrow next to Current or Resolved to reveal sub-categories from which to choose. Select a sub-category to display only messages in that sub-category.
Issue categories and sub-categories correspond to message status values. See Message status for more information.



By SLA status

Click one or more of the available statuses to toggle the filter for that status on or off. See RADAR™ - SLA Monitoring & Management in CIC for information about SLAs.

By acknowledgement

Click one or more of the FA types. See Functional Acknowledgement (FA) status for information about FA types.

By message

In the Messages field, enter a message ID to display the matching message. For example, to filter for the specific Order number 35000, enter 35000 in the field. You must enter the entire message ID. You can enter a comma-separated list of message IDs to search on multiple messages.

By message type

Under the Messages field, select one or more message types to display messages of only those types. A filter for each message type that has passed through your system is shown. For example, if Orders have passed through your system, you see a filter for Orders available to select to show only messages that were Orders.

Deselect a message type to hide those messages. All messages are displayed when no message types are highlighted.

By message detail

You can search all messages for text contained in the Key-Value pairs that make up the details of a message. The search string is a match if it is found in either in the Key or the Value.
For example, if the search string is id, messages that contain the value, candidate, are found as well as messages that contain the key, id.  Note: Wildcard characters are not allowed in this search.

You can also create searches based on specific fields or message properties. See Advanced Message Filtering

You can specify whether all or any search terms must match for a search to be successful. Selecting Match Any returns messages that match at least one of the search criteria. Selecting Match All returns only messages that match all of the search criteria.

You can search in either the Search Text box or in the Message Details fields that are selected, but not on both at the same time.
Multiple values can be searched in the Message Details fields using commas. The search will return all messages that match at least one of the criteria.

By date

Select a date range to display messages that were sent in that range during that time.

You can choose a pre-defined date range or choose Custom Range to open a dialog box where you can specify a time and date range, including the time zone.

Note: When you select This week from the list of date ranges, the Messages page displays data starting from the current workweek -- that is, the previous Monday through the next Sunday. For example, if you selected This week on Wednesday, May 21, you would see data from Monday, May 19 through Sunday, May 25.

Note: All times and dates displayed in the Cockpit reflect the local time zone of the User's System unless otherwise noted using the Custom Range option - which means that you can select a different time zone for the same data. This can be useful when users across different time zones need to view the same data.

Note: The controls for this filter are located in the upper right corner of the page.

Advanced Message Filtering

Use the Advanced Message Filter button  to create searches based on specific fields/message properties.

Clicking the button opens the Customize Message Details dialog box, which contains all the message properties available for the specific customer.  The first time you open this dialog box, there will be no properties available.

Click the Refresh button to sync the displayed message properties with the 5 most recent Messages for every Document Type processed in the last 30 days. This can take a few seconds depending on the number of message properties being retrieved. On successful refresh, the dialog box displays message properties (in alphabetical order) and the time the list was refreshed.

Select the message properties you want to use and click Save.

Message properties are displayed in the Message Details section of the Filter By column.

Managing saved filters

Saved Filters are available for later use on the Messages page and as part of a Scheduled Report. See Managing Scheduled Reports.

To save the current filter criteria, click the Saved Filter link and select Save Current Filter.

Enter a name for the filter and click Save.

You can delete an existing filter. Click the Saved Filter link and select Manager Filters. Select one or more filters you want to delete and click Delete.

Downloading message information

From the Tile view and List view on the Activity > Messages page, click the download button  to download a CSV file containing information about messages that meet the current filtering criteria (see Filtering Message Activity). The CSV file contains information about one message per row and includes the following fields for each message:

• messageId – Uniquely identifies the message.
• transaction_time – Time and date the transaction took place.
• direction – Whether the message was inbound or outbound.
• docType – Type of doc sent or received. For EDI messages, there are specific values that represent specific EDI doc types.
• docAlias – An alias that corresponds to the docType value.
• currency – The currency associated with the message (if relevant).
• faStatus – Functional Acknowlegdement status. See Functional Acknowledgement (FA) status for more information.
• ticketId – Identifies the Zendesk ticket, if it exists.
• ticketStatus – The status of the Zendesk ticket, if it exists.
• tpId – Value uniquely identifying the Trading Partner.
• tradingPartnerName – The Trading Partner's name.
• reprocessAttempts – The number of attempts at reprocessing the message, if any.

Shareable links

Click the link icon  to get a shareable link to this page and copy it to the clipboard. You can send this link to those you want to have access to the page. Recipients can copy the link to the address bar in a browser to navigate to the page.

The recipient of the link must have permission to the linked page in order to use the link to access the page. Without permissions, the recipient cannot see the page.

If you share the link with a recipient who is already logged in to the CIC Cockpit, access to the page is immediate.

If the recipient of the link is not logged in, the login page is displayed. After logging in, the recipient is taken directly to the page.
