Examples of Using Additional Features (AMP SP-API)

If wanting to try the examples below, the following general steps would have to done first.

• Create a connector project (see Creating Connector Project).
• Create the integration project (CIC Project).
• Set dependency of the connector project in the integration project.

The steps below demonstrate how several operations can be performed using the AMP SP-API connector Business Processes and Schemas.

Example 1: SubmitFeed

1. Prepare request payload to invoke CreateFeedDocument Connector BP using a Ruleset. For more information on the request please refer to the Amazon documentation in this link.
2. Use JSON - Get to fetch feedDocumentId from the response returned by CreateFeedDocument Connector BP.
3. Use JSON - Get to fetch URL from the response returned by CreateFeedDocument Connector BP.
4. Construct a feed in a StorageNode format. For more information on the request, please refer to Amazon documentation in this link.
5. Invoke SubmitFeed Connector BPby passing:
   • feedContent - (created in step 4)
   • MarketPlaceIdList - create a list by adding all the marketplaceIds that you want the feed to be applied to, and then convert to a string using Set Value, as shown here.



   • feedType - https://developer-docs.amazon.com/sp-api/docs/feed-type-values
   • url - (captured in step 3)
   • feedDocumentId - (captured in step 4)

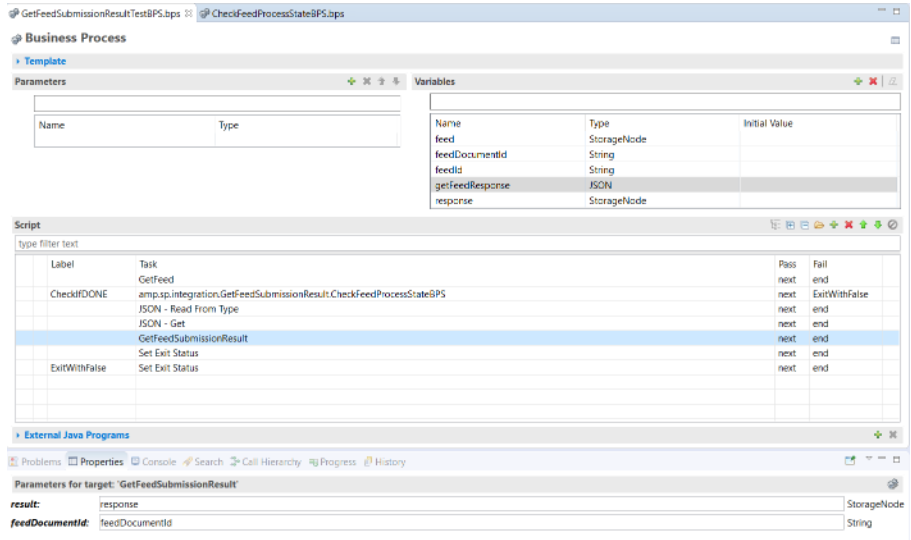

Example 2: GetFeedSubmissionResult

1. Invoke the GetFeed Connector BP specifying the feedId value.
2. Parse the response to check the processingStatus. When the feed moves into the DONE state, proceed to the next step to retrieve the Feed Document.
3. Use JSON - Get to fetch resultFeedDocumentId from the response returned by the GetFeed Connector BP.
4. Invoke the GetFeedSubmissionResult Connector BP by passing the resultFeedDocumentId from the previous step as the value for feedDocumentId parameter to retrieve the feed processing report.



Example 3: GetReportContent

1. Invoke the GetReport Connector BP, specifying the feedId value.
2. Parse the response to check the processingStatus. When the status moves into the DONE state, proceed to the next step to retrieve the Report. At this point, the response includes a reportDocumentId value if there is report data available.
3. Use JSON - Get to fetch reportDocumentId from the response returned by the GetReport Connector BP.
4. Invoke the GetReportContent Connector BP by passing the reportDocumentId from the previous step as the value for the reportDocumentId parameter (to retrieve the report).
