How to Run the Order Fulfillment Flow (including deployment steps)

1. Deploy these projects:

   • com.cleo.b2bcloud.core
   • com.cleo.b2biaas.clarify
   • com.cleo.cic.cockpit.core
   • com.cleo.cic.util
   • com.cleo.cic.connector.amp
   • com.cleo._customer_.booster.amp
   • All other projects that you created as part of the integrations.

   If any of the projects are already deployed and are not modified, they need not be deployed again.

2. Run the ItemFulfillment flow: Submit the item fulfillment input payload.
3. Manually run the FeedResult flow: The scheduler created in the section Configure Schedulers has to be launched. Refer to Starting Objects – Cleo for details on how to launch BPS manually.
4. Automatically run the flow: The scheduler created will kick off automatically based on the interval specified in the process schedule defined in the Configure the Fulfillment Result Flow article.

How to monitor the flow

Review auditor log entries: See Using the CIC Studio Auditor on how to monitor the log entries.

Things to verify in Cockpit include:

• Message Tiles
• Jobs
• Dashboard > Charts

In case there are errors

If the processing fails in any of the steps a ticket would be created and the same is visible in the cockpit message tile and the job with the Issue Flag.

Fulfillment flow

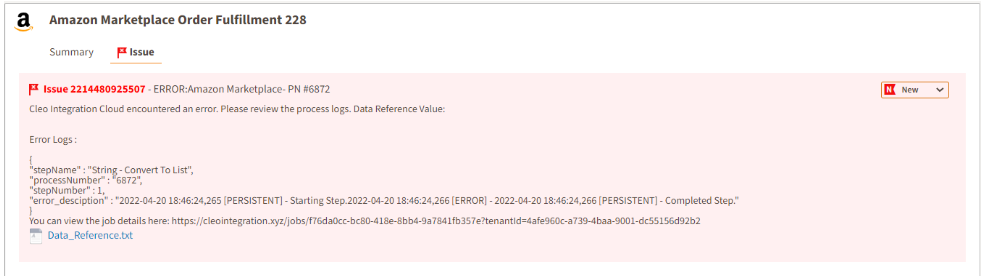

(Below: Cockpit error tile)

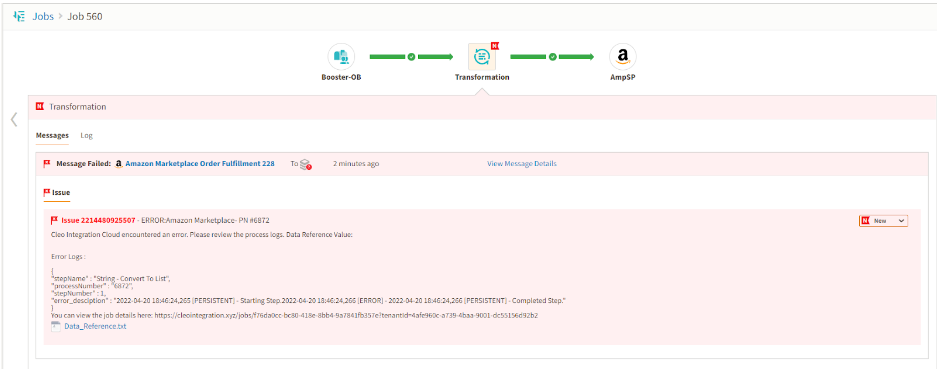

(Below: Cockpit error job)

Fulfillment Result flow

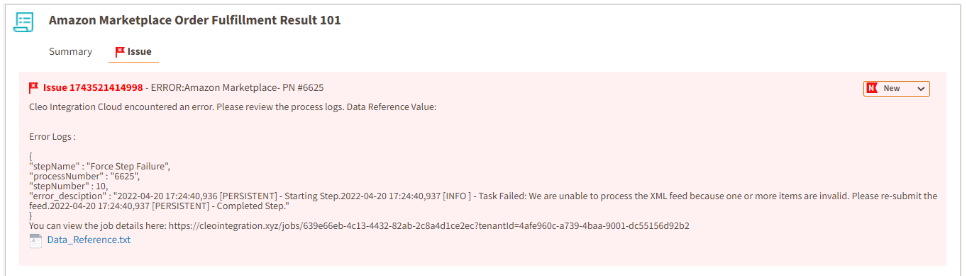

(Below: Cockpit error tile)

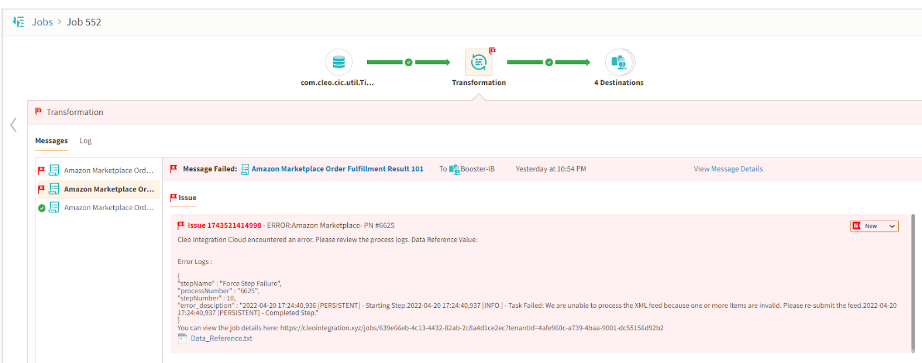

(Below: Cockpit error job)
